Magnesiumanode TYP 60 - 23.62*7.67*1.96, (29.92inch in total), appr. 13.2Lb. AZ63-1,5VDc

Article: B310600

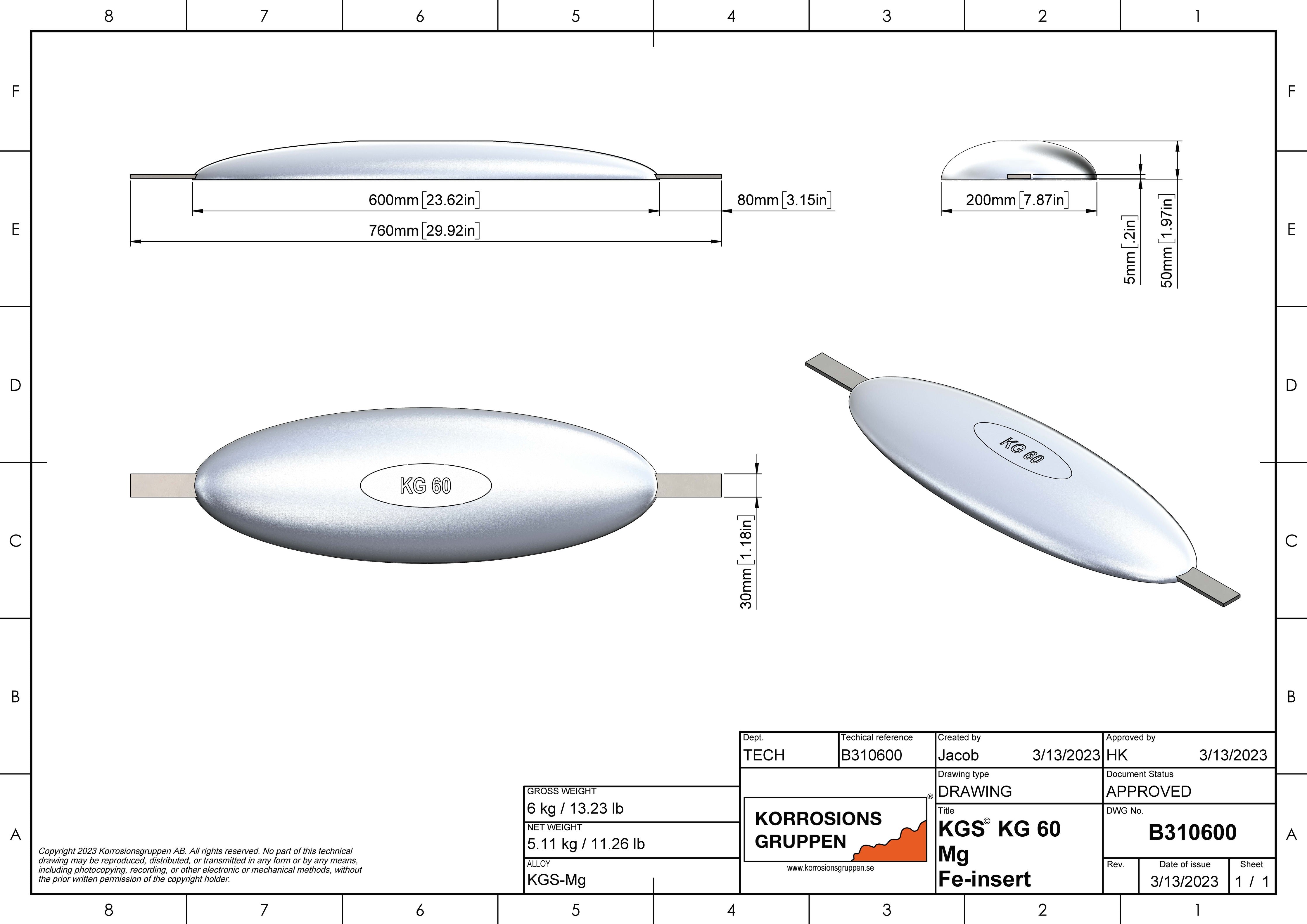

Drawing

  • Total length: 600mm/23.62in
  • Width: 165mm/6.50in
  • Height: 50mm/1.97in
  • Hole distance:
  • Net weight: 5,11kg/11,27lb
  • Gross weight: 6kg/13.23lb
  • Reinforcement: FE
Save 32% Save 32%
Original price $330.00
Original price $330.00 - Original price $330.00
Original price $330.00
Current price $226.00
$226.00 - $226.00
Current price $226.00
Availability:
In stock

Bulk discount
PCS Discount Price
2 5 % $214.70 /st
5 10 % $203.40 /st
20 20 % $180.80 /st
50 25 % $169.50 /st
Request a quote
Product description

Product specification

Type 60 magnesium

Material:Magnesium

Alloy: AZ 63B

Article: B310300

  • Product drawing
  • Net weight: 5.11kg
  • Gross weight: 6kg
  • Reinforcement: Steel
  • Total length: 600mm
  • Length: 460mm
  • Width: 165mm
  • Height: 50mm

Mounted with bolt or welded to object. (no pre-drilled holes in product)



Application areas:

  • Ship hull
  • Port infrastructure
  • Buoys
  • Cable
  • Pipeline
  • Pumps
  • Pontoons
  • Bridges
  • Jetties

Magnesium anodes are mainly used in brackish water and fresh water. Magnesium anodes can be used in brackish water if resistivity exceeds about 1.0 Ωm.

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch with anodes undergoes careful testing and quality assurance, so it has been for over 30 years ...

Not sure what type of material to use?Ask us, we can!

Technical data

  • Capacity: 1230 AH/kg
  • Consumption: 13.3 kg/A year
  • Efficiency: appr 55%
  • Potential: -1,500 mv Rel AG/AGCL in seawater


Typical chemical composition, AZ 63B (most common alloy in freshwater), magnesium.

 Material

% of weight

Aluminum (al)

min 5.3 max 6.7

Zinc (zn)

min 2.5 max 3.5

Manganese (mn)

>0,3

Silicon (si)

~0,1

Copper (CU)

<0,05

Iron (FE)

<0,01

Magnesium

Remaining
